Field of Application:
General construction, pressure vessels, automobile industry, structural uses, pipes and tubes, shipbuilding, machine components, agricultural instruments, re-rolling
Origins: China, Korea, India, Russia, Turkey, Brazil.
Size range
Hot rolled coils : Thickness 1.0 – 25 mm
Width : 1000- 2000 mm
Hot rolled sheets : Thickness 1.8 – 25mm
Width : 1000 – 2000 mm
Length : 3000 – 12000 mm
| Category | Product | Standard | Steel Grade |
|---|---|---|---|
| Structural Steel | Carbon Structural Steel | GB/T700 JISG3101 |
Q235,Q255,Q275 SS400,SS490,SS540 |
| Structural Steel | Low-alloy Structural Steel |
GB/T1591 ASTM EN10025 JISG3106 |
Q345,Q390 A36,A283,A529 S235-460J0/JR/J2/M/N(L) |
| Structural Steel | Building Structural Steel |
GB/T19879 JISG3136 ASTM |
Q345GJ,Q390GJ,Q420GJ,Q460GJ SN400,SN490 A572,A573 |
| Structural Steel | Bridge Steel | GB/T714 JISG3106 ASTM |
Q356q,Q370q,Q420q SM490, SM520 A572 |
| Structural steel | Higher-strength | GB/T16270 ASTM | Q420, Q460, Q500, Q520 A572, A573 |
| Re-rolling Steel | Re-rolling steel | JIS G3101 SAE J4301 | SPHC, SPHD, SPHE SAE1006, SAE1008 |
| Shipbuilding steel | Shipbuilding | Rules of the Classification Societies | A,B,D,AH32,AH36 |
| Boiler and Pressure Vessel Steel | Boiler and Vessel Steel | Q245R,Q345R,Q370R,15CrMoR 13MnNiMoR,12CrlMoVR | |
| Boiler and Pressure Vessel Steel | Boiler and Vessel Steel | JISG3115 | SPV315, SPV355, SPV410 |
| Boiler and Pressure Vessel Steel | Boiler and Vessel Steel | ASTM | A202, A516, A516, A387, A662 |
| Boiler and Pressure Vessel Steel | Boiler and Vessel Steel | JIS3103 | SB410, SB450, SB480 |
| Boiler and Pressure Vessel Steel | Boiler and Vessel Steel | EN10028 | P235GH,P265GH,P355GH |
| Pipeline steel | Pipeline steel | API 5L API 5CT | Gr. A, B, X42-X100 J55, H40, K55 |

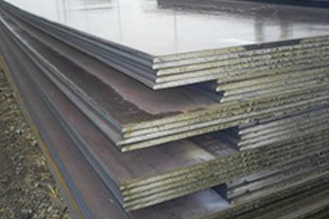

Field of Application :
General construction, shipbuilding, machine components, bridges, boilers and high pressure containers thickness >6.0mm with a range of common carbon steel plate, high carbon steel plate, low carbon alloy plate, deck plate, bridge plate, boiler plate, container plate, etc.
Production Standards & Steel Grades:
DIN EN 10025 / S235 JRG2 / S275 JR
DIN EN 10025 / E295 / E 335
DIN EN 10083-96 / 20 MnB 5
DIN EN 10028-P3-96 / 30 MnB 5 DIN EN 10028-P2-93 / P235 GH / P265 GH / 16 Mo3
DIN EN 10028-P2-93 / P295 GH / P355 GH / P355 NH
DIN EN 10028-P2-93 / P355 NL2
DIN EN 10013-P2-93 / S355 N / S460 N
DIN EN 10111-98 / DD 11 / DD 12 / DD 13
ASTM A36 / A36
ABS-PS2 / AH32 / AH36 / DH32 / DH36 ASTM A 516 / X-55 / X-60 / X-65 / X-70
JIS G 3101-95 / SS400 JIS G 3125-87 / SPA-H
Size range:
Width : 1,526 mm – 5,000 mm
Length : Min 4,000 mm – Max 12,250 mm
Thickness : 6.0 mm – 200.0 mm
Origins : China, Korea,Indonesia, India, Russia,Italy, Brasil
Field of Application :
Automobile Industry, White Goods, Home Applicances, Oil and Air filters, semi product for coating with enamel or zinc, construction and building sector, air-conditioning, furniture, radiators, tubes, profiles, mechanical construction, shelving, containers, drums Origins: China, India, Brazil, Russia, Korea
Production Standards & Steel Grades:
EN 10130 DC 01 / DIN 1623 ST. 12.03
EN 10130 DC 03 / DIN 1623 ST. 13.03
EN 10130 DC 04 / DIN 1623 ST. 14.03
EN 10209 DC 01 EK EN 10209 DC 04 EK
JIS G 3141 SPCC / SPCD / SPCE
ASTM A 1008 / A 1008M ASTM A 619 / DQ – ASTM A 620 / DQ SK

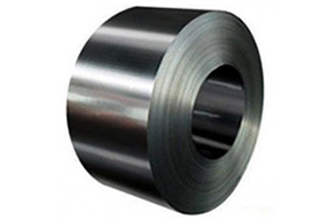

Dimensions for Cold Rolled Coils :
Width : 600 mm – 1,500 mm
Thickness : 0.25 mm – 3.00 mm Coil
Weight : Max 27.0 tons
Dimensions for Cold Rolled Sheets :
Width : 600 mm – 1,500 mm
Thickness : 0.30 mm – 2.00 mm
Length : Min 500 mm – Max 6,000 mm
Packing : 2.0 – 5.0 tons
Dimensions for Cold Rolled Strips :
Width : Up to 499 mm
Thickness : 0.30 mm – 2.00 mm Coil Weight: Max 10.0 tons
Field of Application :
Automotive, white goods industry, heating, ventilation, interior and exterior building structure (ie. window/door, drums, roofing).
Origin : China, India, Vietnam, Korea, Brazil, Egypt.
| Specification | Hot-dip Galvanized Steel Coil | JIS: SGCC, SGC340, SGC400, SGC400, SGC570 SGCH, SGCD1, SGCD2, SGCD3 ASTM A653M/A924M 2004 CS Type A, Type B, Type C, FS Type A, Type B, SS Grade230, Grade255, Grade275,Grade 340 Grade 550, DDS, EDDS Asl1397 2001/ As1365 1996 G1, G2, G3, G250, G300, G350, G450, G550 BSEN 10327 2004/ BSEN 10143 1993 DX51D, DX52D, DX53D, DX54D, DX56D, DX57D S220GD, S250GD, S280GD, S320GD, S350GD, S390GD, S550GD | |
| Specification | Hot-dip Al-Zn-Coated Steel Coil (Galvalume steel Coil) | SGLHC, SGLH 400, 440, 490, 540, SGLCC, SGLC 400, 440, 490, 570 ASTM A792 CS Type A,B,C FS, DS, HTS, SS Grade 33, 37, 40, 50 A, B, 80 | |
| Size | GI Coils
GI Sheets | Thickness Width Thickness Width Length | 0.14-4.0mm 900-2000mm 0.14-3.0mm 1000-1850mm 1000-6000mm |
Field of Application :
Automotive, white goods industry, heating, ventilation, interior and exterior building structure (ie. window/door, drums)
Product Standards:
EN 10142 (DX51D+Z, DX 54 D+Z, DX 56 +ZF)
ASTM A653 / A653M 03
Dimensions:
Width : 600 mm – 1,500 mm
Length : Min 1,000 mm – Max 15,00 0 mm
Thickness : 0.20 mm – 1.5 mm
Packing Weight : 2.0 – 9.0 tons
Origin : China, India, Vietnam, Korea,Middle East
